Salient Features

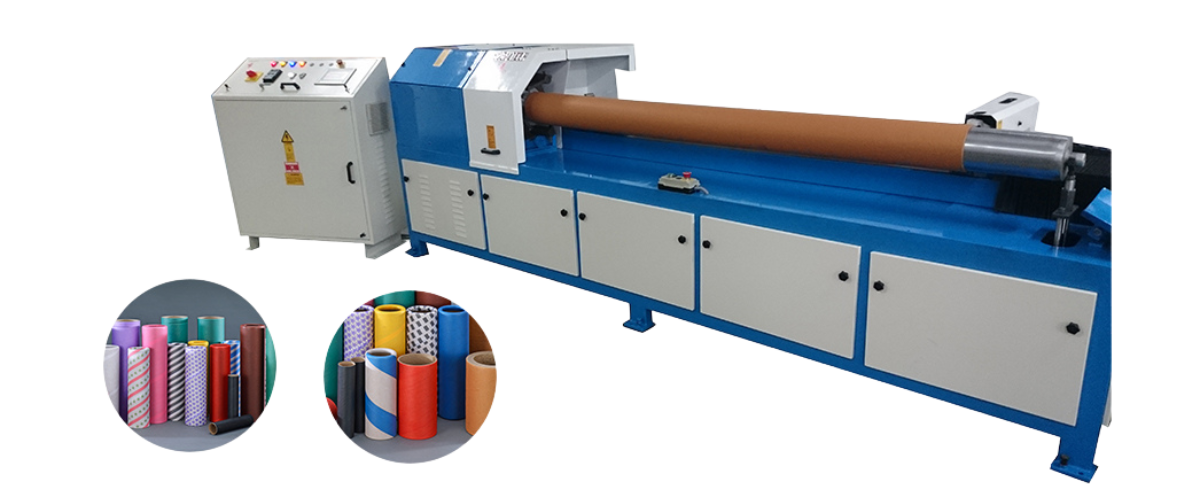

AUTOMATIC PAPER CORE CUTTING MACHINE Model EC 1500 to recut jumbo length paper cores into smaller width cores.
- Cutting station : Operated by imported SERVO system of reputed brand with programmable length cutting facility (single or six different cutting width) with touch screen operation.
- Various cutting options can be easily programmed
- Burr free fine cutting
- Output : Approx. 20 cuts per minute depending upon the core sizes and cutting width
- Operator : One person
Working Range:
- Minimum Inner Diameter of Core : 50 mm
- Maximum Inner Diameter of Core : 203 mm
- Maximum wall thickness of Core : 12.5 mm
- Minimum length of Parent Core : 300 mm
- Maximum length of Parent Core : 1500 mm
- Minimum cut length : 15mm
- Maximum cut length : 1500 mm
- Cutting Accuracy : +/- 1 mm depending upon the sizes
- Power (Approx) : 3.5 KW
- Required Air pressure : 6 Bar maximum
Salient Features
AUTOMATIC PAPER CORE CUTTING MACHINE Model EC 2200 (Special model) to recut jumbo length paper cores into smaller width cores.
- Cutting station : Operated by imported SERVO system of reputed brand with programmable length cutting facility (single or six different cutting width) with touch screen operation.
- Various cutting options can be easily programmed
- Burr free fine cutting
- Output : Approx. 20 cuts per minute depending upon the core sizes and cutting width
- Operator : One person
Working Range:
- Minimum Inner Diameter of Core : 50 mm
- Maximum Inner Diameter of Core : 203 mm
- Maximum wall thickness of Core : 16 mm
- Minimum length of Parent Core : 300 mm
- Maximum length of Parent Core : 2300 mm
- Minimum cut length : 15mm
- Maximum cut length : 2200 mm
- Cutting Accuracy : +/- 1 mm depending upon the sizes
- Power (Approx) : 3.5 KW
- Required Air pressure : 6 Bar maximum
